SI-Series
SI-Series
Fuel Types:
Variants:
Description :
Slim & Compact design
Available for 2,000 kg/h capacity
Safety Alarm and easy to operate
Boiler Efficiency gas fuel : 98%
Boiler Efficiency Diesel fuel : 95%
Equiped with continuous pilot for speedy load and energy saving
Easy status checking and operation
The operating conditions of the boiler are clearly displayed using visibly recognizable colours and messages. You can safely and easily control automatic water and steam supply with the press of a switch.
Alarm function
An alarm function helps to avoid unintended boiler stoppages. It is particularly useful from the perspective of preventive maintenance.
The panel interface supports multiple
The control panel language can be switched between English, simplified Chinese, traditional Chinese, Korean, and Japanese.
Heat control function
Operational data including the volume of steam and blowdown are displayed on the panel, which ensures the ability to maintain safe and stable operating conditions.
New Fuctions for ever greater safety
Flame sensor with self-analysis function
The flame sensor itself is equipped with a function that can detect any malfunction
High-performance steam pressure switch
A fail-safe steam pressure switch is used based on the physical phenomenon whereby a magnet loses its magnetic force when heated.
Miura Online Maintenance System (MOM)
The boiler automatically alerts the maintenance centre if it detects a fault.
Space-efficiency
Space-saving through close placement
- Significant space-savings
- High-efficiency operation with multiple boilers
- Reduces risk of breakdowns
Special features for SI Gas Boiler
Continuous Pilot Control
With Continuous Pilot Control, the boiler can respond to sudden load changes and subsequently supply steam at a stable pressure. The continuous pilot allows immediate combustion start and fast start up even under sudden load changes, resulting in small steam pressure fluctuations, stable steam supply and increase in production efficiency. Losses due to purge when the boiler start and stop are also greatly reduced.
Inverter as a standard equipment
Energy Saving Since only the required amount of air is provided for combustion in the boiler, the rotation speed of the blower motor is greatly reduced compared to the damper system.

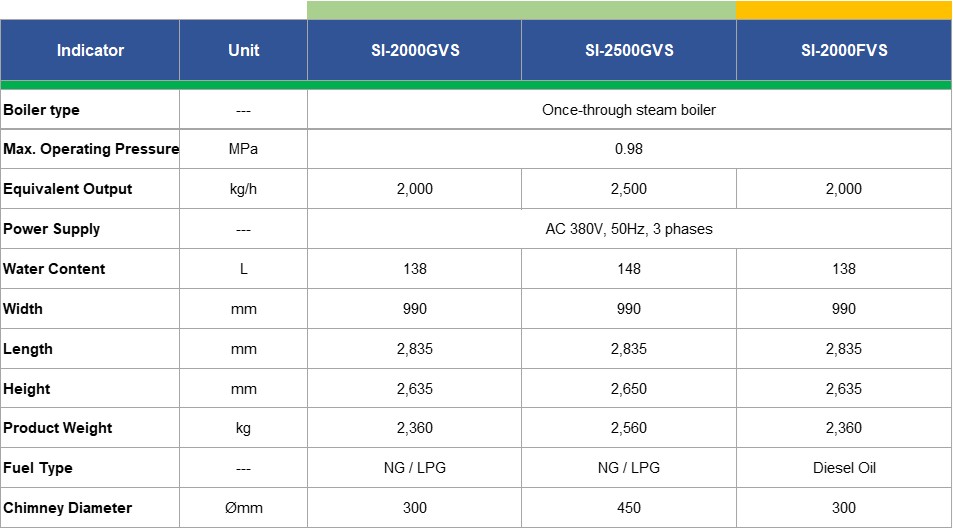

Specification
